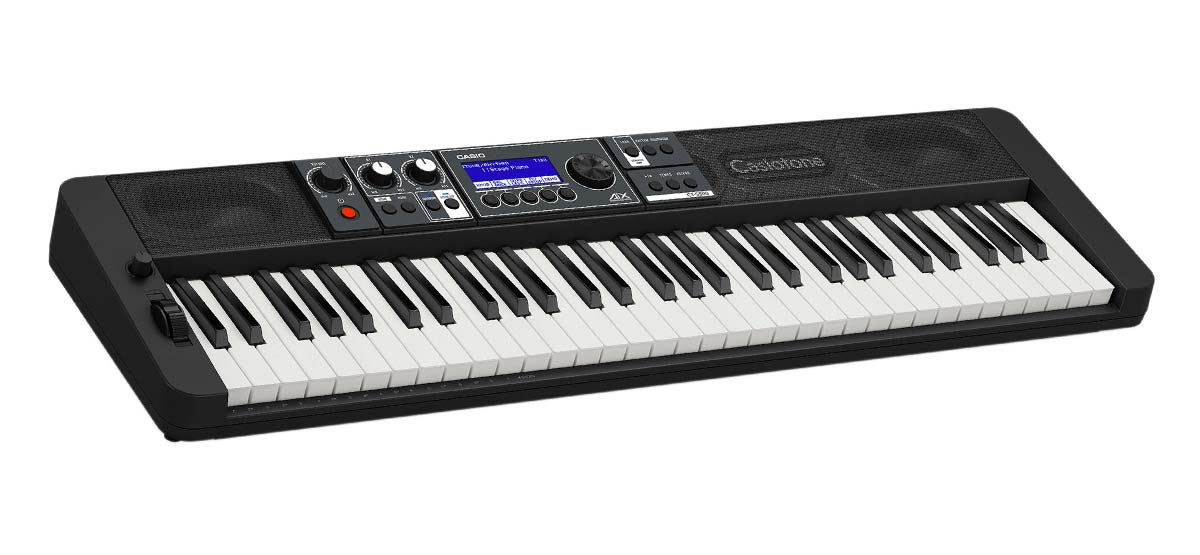

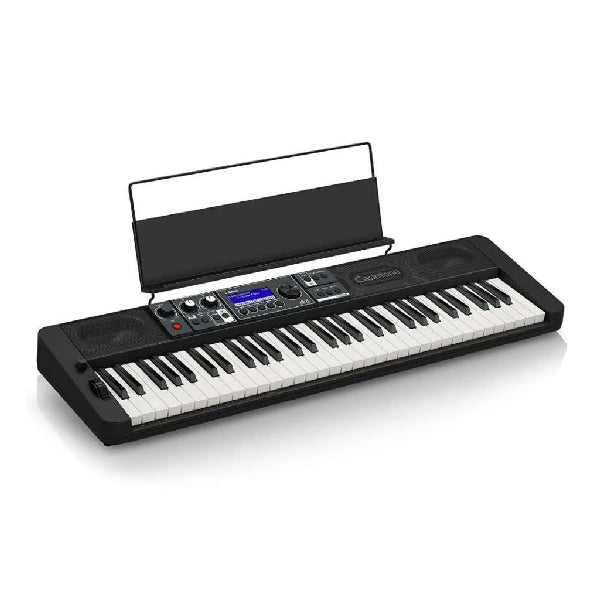

Casiotone CT-S500

Specifications

Basic Information

Number of Keys

61

Touch Response

3 sensitivity levels, off

Sound Source

AiX

Maximum Polyphony

64

Number of Tones

800

Number of Rhythms/Patterns

243 User Rhythms: 50

Automatic Accompaniment

Yes

Built-in Songs

User Songs: 10

Demonstration Songs

1

Songs

Part Off: Left Hand, Right Hand, Both Hands

Recorder

[MIDI Recorder] 6 tracks, 5 songs Approximately 40,000 notes for each song

Speaker

[13cm x 6cm] x 2

Amplifiers

2.5W + 2.5W

Power Supply

AC Adaptor: AD-A12150LW (DC 12V) Batteries: AA-size alkaline batteries x 6 or AA-size rechargeable nickel metal hydride batteries* x 6 Battery Life: Approximately 3 hours continuous operation Actual continuous operation time may be shorter due to battery type, performance type, and usage environment. *Measured values while using eneloop batteries. eneloop is a trademark of Panasonic group.

Power Consumption

7.5W

Dimensions

930 x 258 x 91 mm (w/o music stand)

Weight

4.7kg (w/o batteries)

Color

Black

Included Accessories

Music Stand, AC Adaptor AD-A12150LW, Wireless MIDI & Audio Adaptor WU-BT10, Strap Lock

Key Features

Effects

Reverb: 24 (+Preset for each tone) Chorus: 12 (+ Preset for each tone) Delay: 15 (+ Preset for each tone) DSP Effect: 100 (+ Preset for each tone) Master EQ: 10 (+ User: 1) Surround

Layer/Split

Layer: 3 (Upper1/2, Lower1), Split: Yes

Octave Shift

-3 to +3 octaves

Transpose

-12 to +12 semitones

Tuning Control

A4 = 415.5 Hz to 440.0 Hz to 465.9 Hz

Scales

Equal temperament + 16 variations

Arpeggiator

150

Registration

64 setups (4 sets x 16 banks)

One Touch Presets

243

Auto Harmonize

12

Metronome

Beat Bell: Off, 1 to 9 (beats) Tempo Range: 20 to 255 Tap Tempo: Yes

LCD

Yes, Type: Full-dot, Back Light: Yes (white)

Pitch Bend Wheel

Yes

Knobs

3

Others

Dial

Yes

Volume Sync EQ

Yes

Others

・Sampling Function Input Method: Audio In / Media (WAV) Sampling Type / Time: Sampling Melody × 1 / Approx. 10 sec., Sampling Drum Set ×1 / Approx. 3 sec. Format: 44.1kHz, 16 bit, Stereo Loop Functionality

Input/Output Terminals

LINE OUT

2 (L/MONO, R): Standard jack

USB port

Type A, micro B

AUDIO IN

Stereo mini jack

PEDAL

PEDAL 1: Standard jack PEDAL 2 / EXPRESSION: Standard jack

PHONES/OUTPUT

PHONES: Stereo mini jack

Extended Functions

Connection to App

Supported App: CASIO MUSIC SPACE

Wireless Functionality

Bluetooth🄬 version 5.0 AUDIO Profile: A2DP, Supported Codec: SBC MIDI Profile: GATT (MIDI over Bluetooth🄬 Low Energy) (using supplied Wireless MIDI & Audio Adaptor WU-BT10)

MIDI

Yes (Using the USB port): GM level 1 compatible
